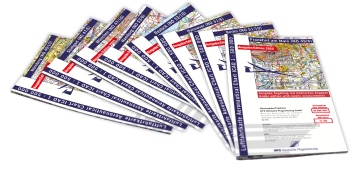

ICAO Germany DFS 2024 Zweefvliegen (Gelamineerd)

Zweefvlieg uitvoering Gelamineerd!

From north to south, east to west, or in the neighboring countries.

Issue 2024: The ICAO chart 1: 500,000 is the standard chart used for conducting VFR flights and shows the territory of the Federal Republic of Germany of the bordering countries (multicolored with forest print and shading). It contains important information concerning topography and air traffic control as e.g .:

    Current airspace structure and topography
    VFR reporting points
    Aerodromes with name, location indicator and frequency, length and direction of the runway,
    information on direction finders and location of the traffic pattern
    FIS sectors with frequencies
    Segelfluggelände, sites for hang gliders and ultralight aircraft,
    Parachute descents, free balloon launch sites
    Radio navigation aids (NDB, VOR, VOR / DME, VORTAC) with name, frequency and Morse Code identification
    Air navigation obstacles and maximum elevation figures
    Isogonals
    Motorway names
    Representation intensively used skydive terrain (skydive Symbol plus red circle)

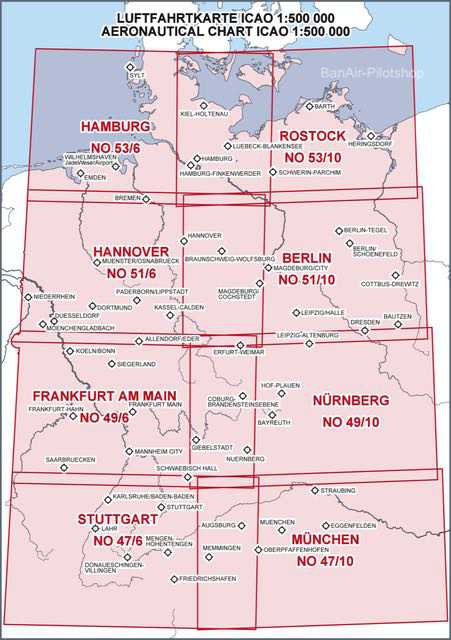

The Aeronautical Chart ICAO 1: 500,000 on the rear panel next to an overview map for sheet lines include the following information:

    Overview of the airspace structure in Germany
    Information on transponder and altimeter settings
    ATIS and VOLMET frequencies
    light signals
    Integrated coordinates ruler
